MSD 280 R10 YODN 280W 7800°k 2000 hours

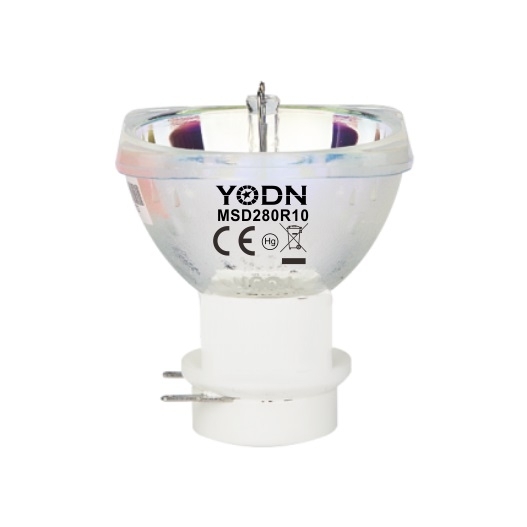

YODN MSD 280 R10 Lamp: 280W High-Brightness Discharge Source
The YODN MSD 280 R10 is a high-pressure discharge lamp specifically designed for latest-generation moving head projectors. Ideal for production services, theaters, and lighting designers, this source delivers a flux of 11,000 lumens at a temperature of 7,800K. It represents the reliable choice for ensuring sharp, brilliant light beams in tours and live events.
Technical Specifications
|
Feature |
Value |
|
Rated Power |
280 Watts |
|
Luminous Flux |
11,000 lm |
|
Color Temperature |
7,800K |
|
Color Rendering Index (CRI) |
75 |
|
Average Lifespan |
2,000 hours |
|
Type |
Metal halide with reflector |
Professional Applications
The MSD 280 R10 is optimized for use in high-performance Beam, Spot, and Hybrid moving heads (such as Futurelight PLB-280, Ablelite TBD, BriteQ BTX-TITAN, FINE-xtreme-280W, Aiweidy A-2280BS, JOLLY X-3 coupe, ACME XP-280 Beam, XMlite TBD, XMlite Hot Beam 280, and XMlite Beam & Spot 280). It is the standard solution for installations in large theaters, television studios, and outdoor stages where defined beam projection is required over long distances alongside dynamic graphic effect management.
Competitive Advantages
The short-arc design combined with high internal pressure enables the generation of superior luminous density, essential for extremely defined mid-air effects. YODN technology guarantees constant chromatic flux stability throughout the entire 2,000-hour lifespan, offering a high-performance, cost-effective alternative to Platinum 14R or Sirius HRI 280 models.
FAQ for Installers and Technicians
Is it possible to install the lamp in any orientation?
Yes, the YODN MSD 280 R10 is designed for universal operation. It can function in any position within the moving head without compromising arc stability or reflector durability.
Is it fully compatible with Sirius HRI 280W ballasts?
Yes, the lamp is developed as a direct alternative for projectors originally equipped with Sirius HRI 280 or MSD Platinum 14R, ensuring full compatibility with existing ignition electronics.
What steps are needed to maximize the 2,000-hour lifespan?
To reach the rated lifespan, it is essential to ensure the projector's ventilation system is clean and that the lamp does not undergo excessively frequent power cycles (hot restrike), while strictly respecting cooling times.
