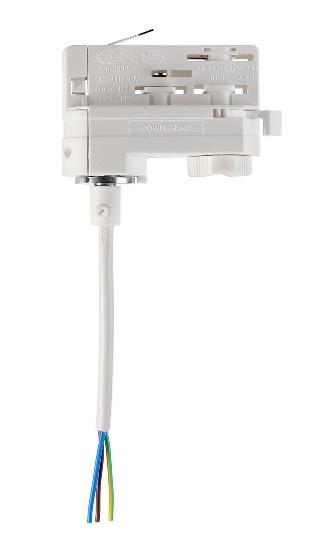

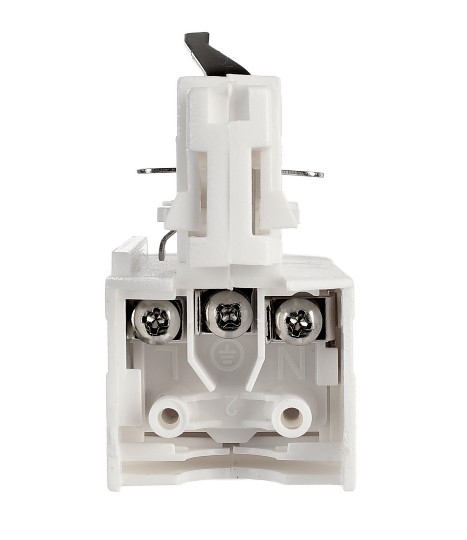

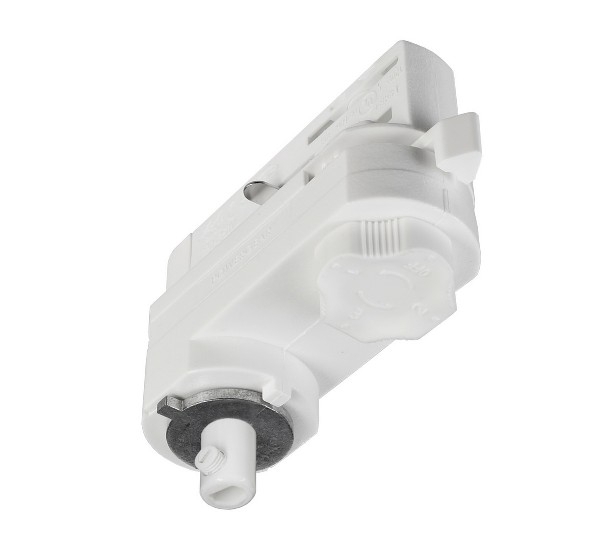

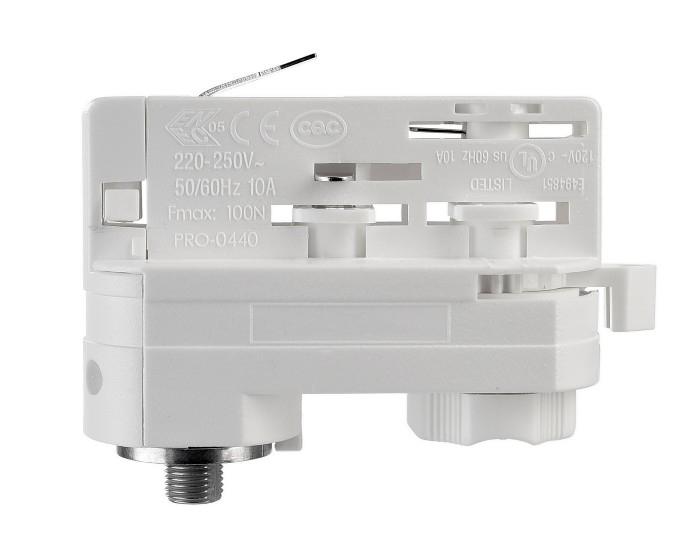

White electro/mechanical adapter for 3-phase power rail system max 10A 10Kg

Kapego
EAN Code: 4042943170033

Manufacturer Code: 710097

Brand: Kapego
On request

Shipping starting from 12.90 €. Click here for more info

Download product sheet
€ 9,07
€ 9,07

PRICES WITH VAT EXCLUDED

The three-phase adapter for D-Line electrified track is the ideal solution for installing lamps on 3-phase track lighting systems in Home, Living, Retail, Shop, and commercial environments.
Designed to ensure reliability, safety, and maximum compatibility, it has a max. load of 10 kg/100 N. Easy to install, includes reduction bush, M10 flat nut and strain relief grommet. It has also an integrated secondary drop protection.
The product is suitable for both surface-mounted and recessed installations.
Technical Specifications:
Material: Plastic
Color: Traffic White (RAL 9016)
Frequency: 50 / 60 Hz
Nominal input voltage: 220–440 V AC
Output current: 10 A
Electrical protection class: Class I (protective earth)
Ingress protection rating: IP20

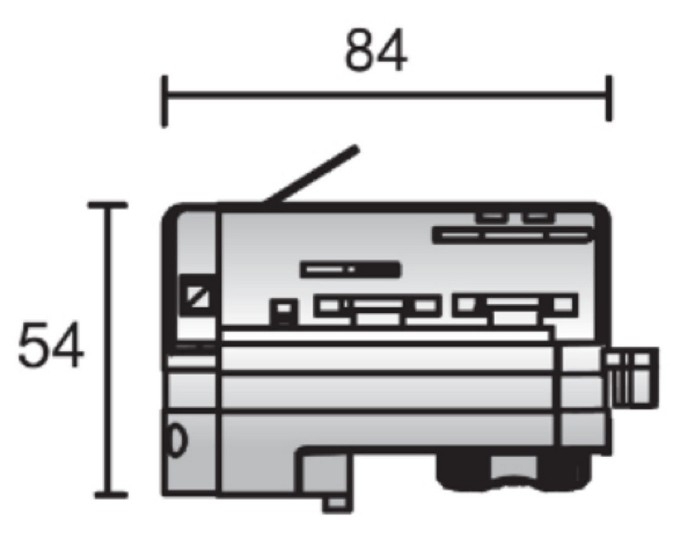

Length: 84 mm
Width: 32 mm
Height: 54 mm

Compatible with 3-phase track systems from leading lighting manufacturers:
Molto Luce (3-phase track)*, Global/Nordic (Trac Pro 3)*, Ivela (LKM Square, Quadro)*, Erco ((3-Phasen)*, Hoffmeister (3-Phasen)*, Zumtobel/Staff (3-Phasen)*, Eutrac (One-Track)*, SLV (S-Track), Dekolight (all 3-phase products).
*Not compatible with the Alnitak series and 3-phase adapters with integrated multi-DC power supply.
