DIN Power supply AC/DC 12V for Dina products

1 of 0
Alimentatore DIN AC/DC 12V per prodotti Dina
Nicolaudie Group
EAN Code:

Manufacturer Code: POWERDIN

Category: Power supply
Brand: Nicolaudie
Available

Shipping starting from 12.90 €. Click here for more info

€ 29,68
€ 29,68

PRICES WITH VAT INCLUDED

Scopri gli sconti

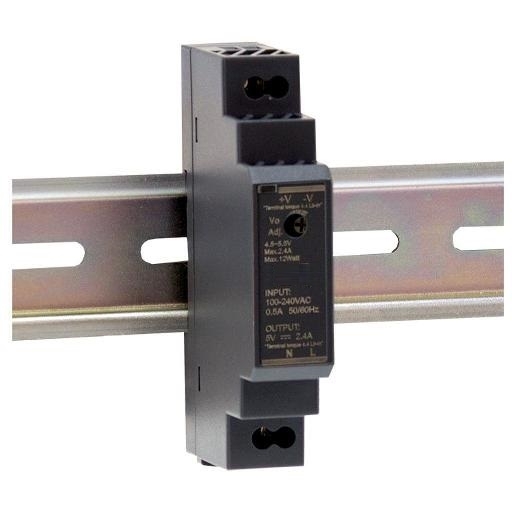

Power supply for players DINA DR-1, DR-1 LITE, DR-2, DR-2 Lite, Nasplit-4 by Nicolaudie. Ultra slim design, can be adapted to be installed on TS-35/7.5 or TS-35/15 DIN Rails. The body has a narrow width which allows for space saving within a cabinet and has been designed with plastic housing that can effectively prevent electrical hazards. Depending on availability, the HDR-15-12 version can alternatively be shipped.
Specifications:
Output Voltage: 12V dc
Output Current: 1.25A
Input Voltage: 85 → 264 V ac, 120 → 370V dc
Power Rating: 15W
Electrical Phase: 1
Number of Outputs: 1
Height: 90mm
Width: 17.5mm
Depth: 54.5mm
Load Regulation: ±1%
Output Voltage Adjustment Range: 10.8 → 13.8V
MTBF: 1166kh
Ripple And Noise: 120mV Pk-Pk
Minimum Temperature: -30°C
Maximum Temperature +70°C
Standards Met RoHS Compliant, TUV EN 60950-1, UL 508
