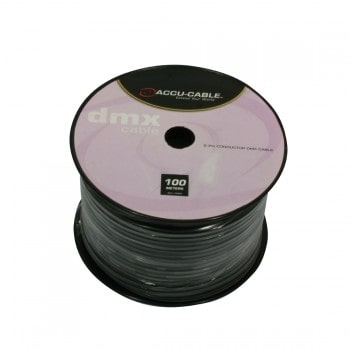

Black DMX cable roll 5 pin 110 Ohm AC-DMX5/100R 100mt

1 of 2
Cavo DMX 110 ohm 5 poli nero su bobina da 100m
EAN Code: 640282090728

Manufacturer Code: 1622100002

Available 3

Shipping starting from 12.90 €. Click here for more info

Download product sheet
€ 208,47
€ 208,47

PRICES WITH VAT INCLUDED

DMX cable on a Roll 5pin 100m black, 110 Ohm, Color: black
Specifications: 2 pairs of cable with a total number of 4 conductors. Cable AWG 22 with diameter 0,9 mm , made in TC-Tinned Copper.
Insulation Material:PE Polyethylene
Twists: 3m
Inner Jacket Material: PE Polyethylene
Diameter: 1 mm
Pair Color Code: Green/Black/Red/White
Outer Shield Trade Name: Duofoil®, type: tape (Layer Number 1, Material: Aluminum Foil-Polyester, Coverage %: 100) / Braid (Layer Number 2, Material: TC-Tinned Copper, Coverage %: 85)
Outer Jacket: PVC-Polyvinyl Chloride
Overall Nominal Diameter: 7 mm
Mechanical Characteristics:
Operating Temperature Range: (-30 degrees C To + 75 degrees C)
Bulk Cable Weight: 23 Kg/1000
Minimum Bend Radius (Install): 89 mm
Maximum Recommended Pull Tension: 10 Kg.
Electrical Characteristics:
Nominal Characteristic Impedance: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 41 pF/m
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 75 pF/m
Nominal Velocity of Propagation: 76%
Nominal Delay: 5,25 Nanoseconds for m
Nominal Conductor DC Resistance @ 20°C: 24 Ohms/305 m
Individual Pair Nominal Shield DC Resistance @ 20°C: 15 Ohms/305 m
Nominal Attenuation (dB/30 m): 0.6 (@ 1 MHz) dB/30 m
Maximum Recommended Current: 2.1 amps per conductor @ 25°C
