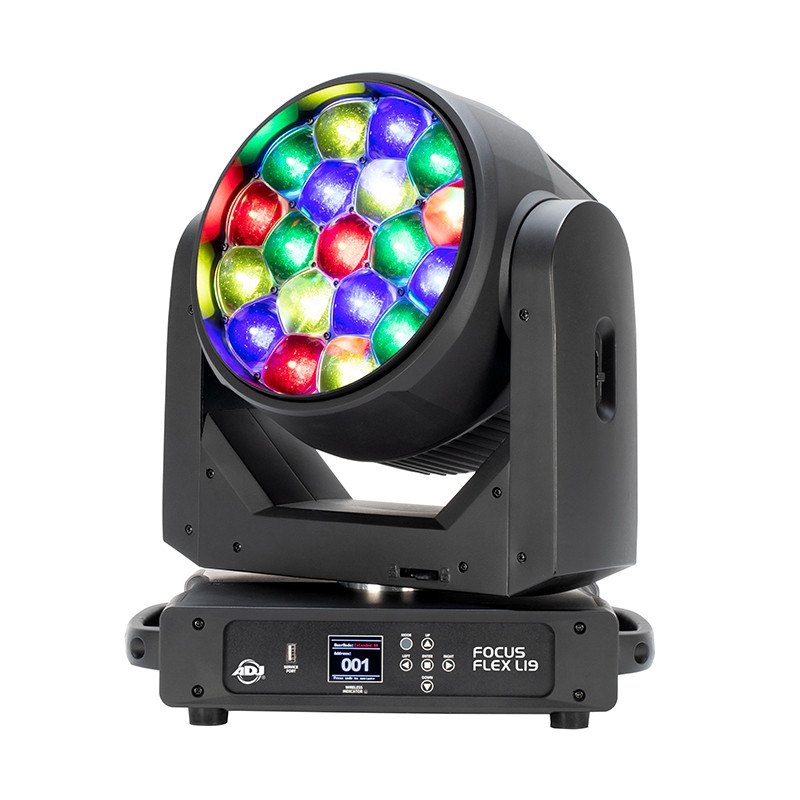

Focus Flex L19 is a robust and versatile moving head luminaire capable of creating wash, beam and pixel effects. Designed to provide lighting designers with both flexibility and creative potential, it is ideal for event production and rental applications as well as for permanent installation in concert halls, theatres, nightclubs and churches.
Specifications:
Features:
• Moving Light Pixel Wash
• Individual Pixel Control
• Built-In Pixel Effect Programs
• Electronic Strobe / Dimmer
• Pan/Tilt: 540/630 x 260
• Beam Angle: 4.3° ~ 29°
• Field Angle: 5° ~ 50°
• Color Calibrated Pixels so units match from batch to batch
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0-100% smooth dimming
• Fan Cooled
Colors:
• 19x 40W RGBL LEDs (Red, Green, Blue and Lime)
• CRI: 83.4
• Built-In Color Macros
• 2,700K ~ 10,000K Linear White Color Temperature Control
• Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K
• 39,975 lux / 4.3° beam @ 16’ (5m)
• 1,422 lux / 28.3° beam @ 16’ (5m)
• Lumens: 7,814 (Zoomed Out, Full On)
Control:
• 5 DMX Modes (22, 31, 40, 104, Standard CMY 31, Extended CMY 34)
• Color LCD display with 6-button function menu
• Control: DMX512, ArtNet, sACN and KlingNet Compatible and wireless DMX
• RDM (Remote Device Management) compliant
• With Wired Digital Communication Network
Pan/Tilt:
• Pan: 540/630 degrees
• Tilt: 250 degrees
• 16-Bit Fine Pan & Tilt
• Pan & Tilt Locks
Connections:
• DMX Connections: 5-pin XLR In/Out
• RJ45 In/Out
• Power Connections: Indoor Locking Power In/Out
Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 918W @120V
Dimensions:
• Dimensions (LxWxH): 10.16”L x 15.04”W x 18.51”H (258x382x470mm)
What’s Included:
• 180mm Omega Brackets (2x)
• 1.83M locking power cable
• Safety Cable
