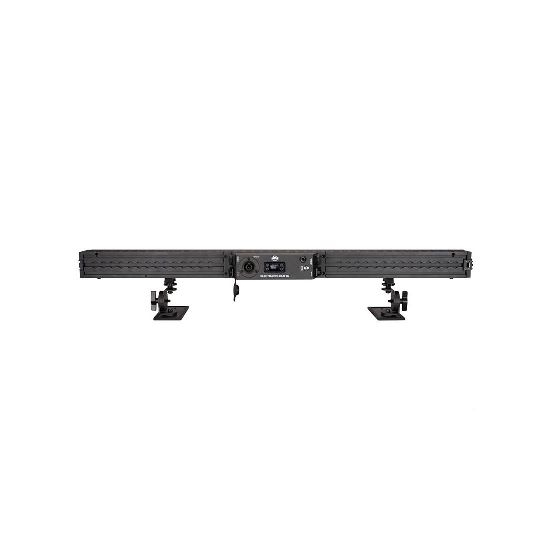

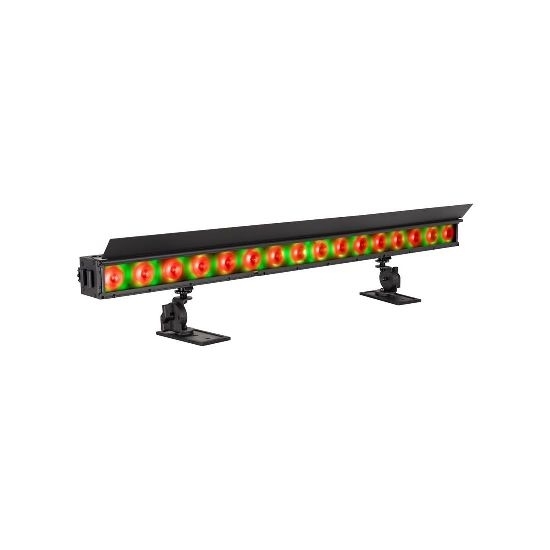

ElectraPix 16 battery led bar IP65

The ElectraPix Bar 16 is a professional 1-meter LED lighting bar, battery-powered or mains-connected, ideal for live events, scenic installations, and TV productions. Equipped with 16 x 20W RGBAL+UV Hex LEDs, it delivers high-performance lighting with individual pixel control, dynamic visual effects, and adjustable white color temperature.

Thanks to its IP65-rated housing, high-capacity internal battery, and digital OLED display, the ElectraPix Bar 16 provides up to 10 hours of runtime in energy-saving mode, making it perfect for mobile or outdoor use—without sacrificing brightness or flexibility.

Key Features:
16 x 20W RGBAL+UV Hex LEDs (Red, Green, Blue, Amber, Lime + UV)
66 x 0.2W RGB LEDs for background effects
Full pixel mapping with individual LED control
Built-in foreground and background LED programs
Adjustable white color temperature: 2,700K to 9,900K
LED lifespan: 50,000 hours (average)
User-selectable LED refresh rate: 900 Hz to 25 kHz
Electronic strobe: 0.3 – 11 Hz
16-bit smooth dimming with 6 dimmer modes and 4 dimming curves

Design & Mounting:
IP65-rated enclosure for indoor and outdoor use
Digital OLED display
Integrated L-Track system for accessories and rigging
Anti-glare screen and diffusion filter slot
Adjustable tilt feet
Horizontal locking system to link multiple ElectraPix Bar 16 or Bar 8 units

Control Options:
DMX512 (9 channel modes: 5 / 6 / 9 / 13 / 21 / 24 / 96 / 99 / 114 ch)
Aria X2 Wireless DMX
Bluetooth control
RDM and RDM Net compatible
IR remote control (includes UCIR24)
Onboard manual control
Master/Slave modes

Integrated Battery:
Rechargeable lithium-ion battery
Capacity: 14,000 mAh
Voltage: 22.2V
Battery life:
5 hours (full power, standard mode)
Up to 10 hours (power-saving mode)
Full charge time: 7 hours
Battery rated for 500+ charge cycles
