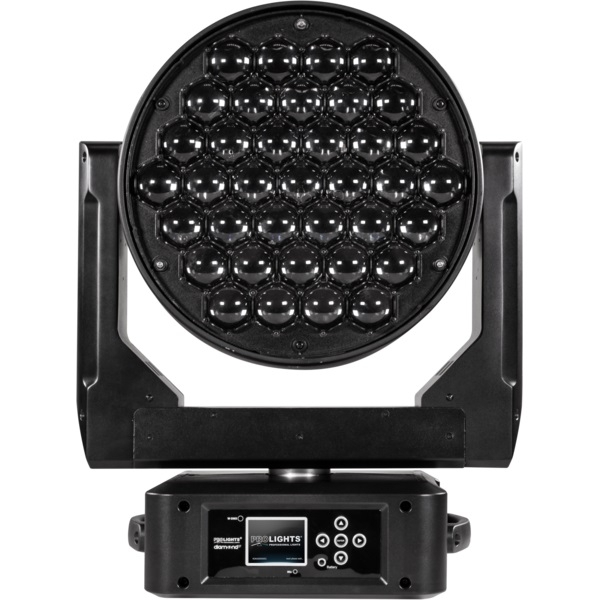

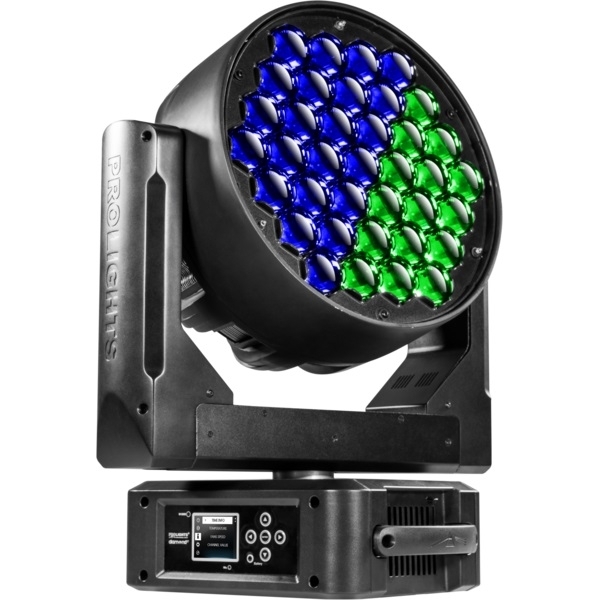

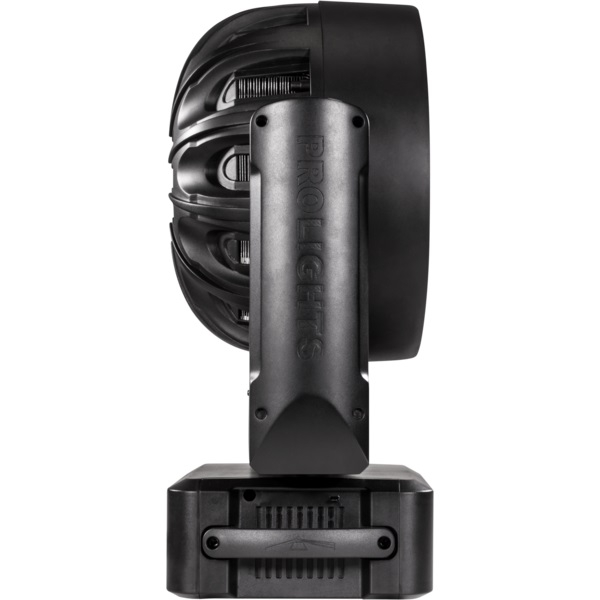

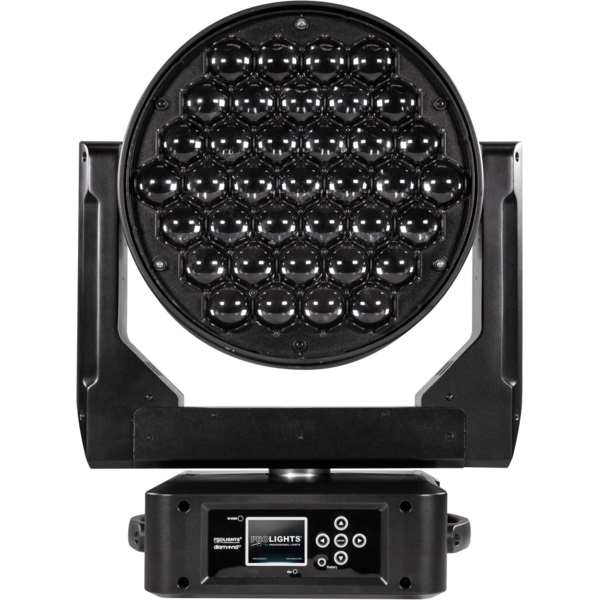

Led wash moving head Diamond 37 RGBW 37x15W

The moving head projector DIAMOND37 is the largest of the stunning DIAMOND LED pixel wash family. As a wash light, the 6-66° zoom, even beam coupled with the fantastic colour range create a true workhorse fixture. For the next level, individual control of each LED pixel tied with the DIAMOND’s clever optical design and its onboard effects provide 'eye candy' effects both to look at and in the air.
Powerful, consistent and clever; the DIAMOND37 makes a statement even on the largest stage.
LIGHT SOURCE
Source: 37x15W RGBW Osram Ostar LEDs
Lux: (6°) 15530 - (66°) 5200lux @5m
Source life expectancy: >50.000 h
OPTICS
Zoom: 6-66° motorised linear zoom
Lens diameter: 298mm
Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
Colour mixing: RGBW/FC
CTC: CTC control through independent DMX channel
White presets: 2700~9000K
Colour wheel: virtual colour wheel with presets
Macros: several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
BODY
Pan angle: 630°
Tilt angle: 265°
Pan/Tilt resolution: bit 8/16 bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with hi-resistance polycarbonate cover
Body colour: black
CONTROL
Protocols: DMX512, RDM, Art-Net,W-DMX
DMX channels: 19 / 22 / 41 / 170channel
Pixel control: pixel2pixel control
W-DMX: included, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: LCD high resolution colour display
Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included
Hibernation: power safe mode when lost DMX
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0~100% electronic dimmer
Strobe / shutter: 1-25 Hz, electronic
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240V – 50/60Hz
Power consumption (at 230V): 520W
Power consumption (at 120V): 520W
PHYSICAL
Cooling: combination of heat pipe cooling system and low noise fan
Sospension and fixing: any position with quick-lock omega brackets

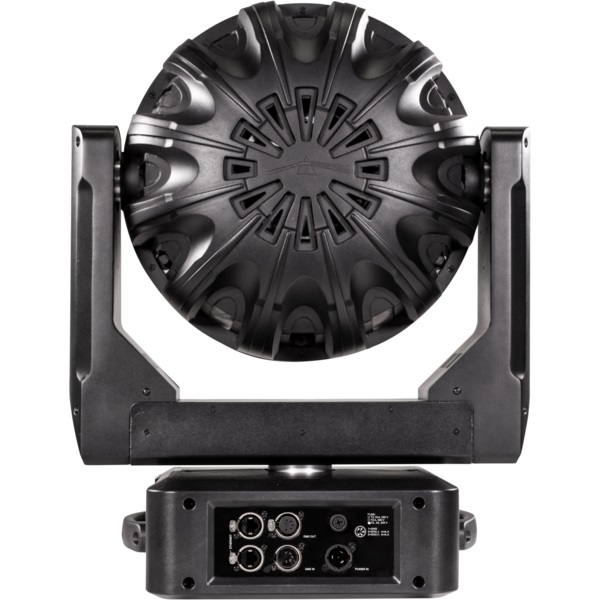

Signal connection: Amphenol XLR 5p IN/OUT connectors
Data connection: Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN connector
IP rating: 20
Dimensions (WxHxD): 420x336x475mm
Weight: 16kg
